[ixpmanager] No graphs on smokeping

[Radu Ghidiceanu]

Hi All,

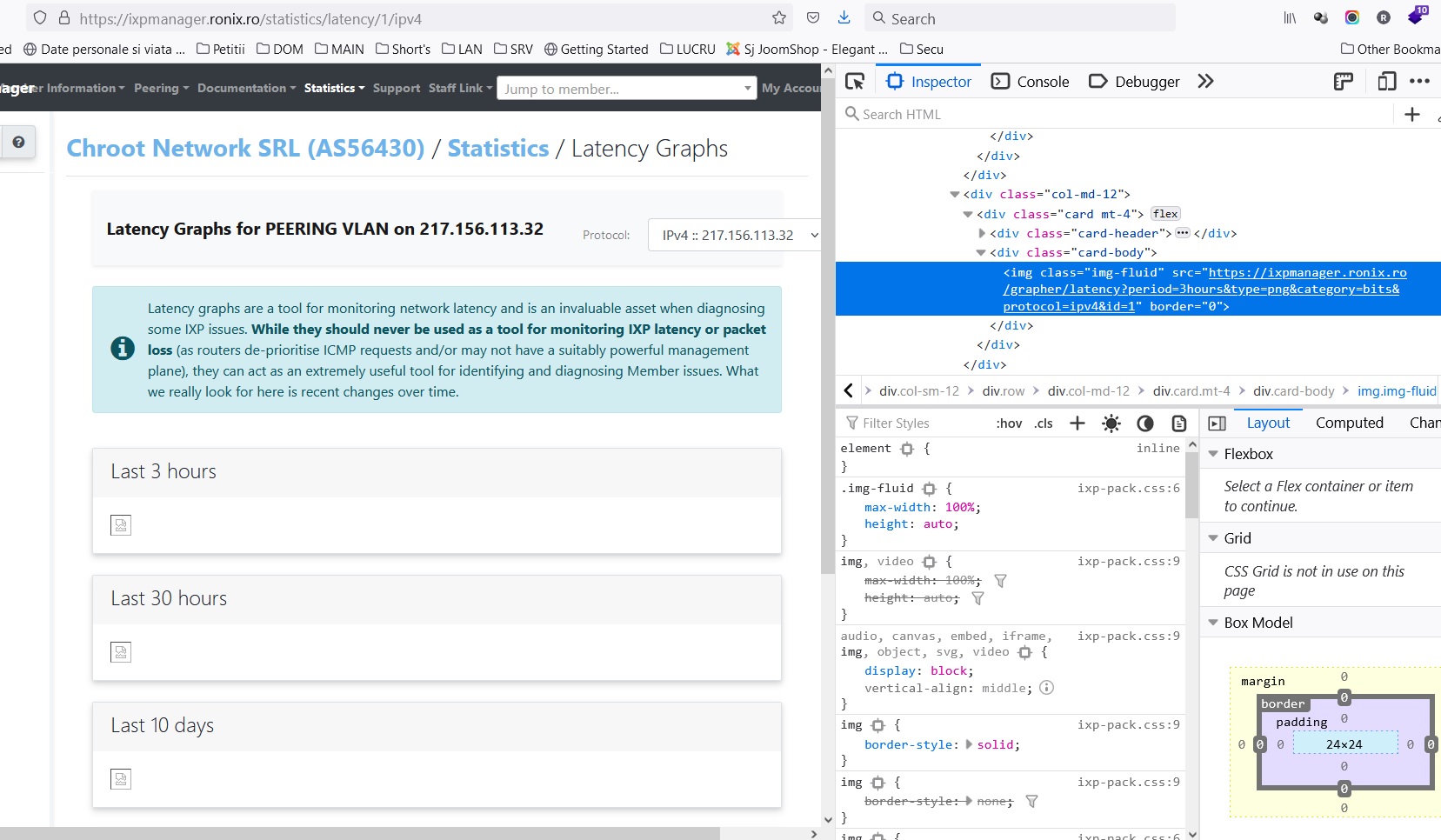

I have IXP Manager functional and I-m trying to extend with features. First of them is smokeping but I get no graphs. See the picture attached.



Following the docs on your page, it seems all the points are checked.



Smokeping alias looks like functioning:

https://ixpmanager.ronix.ro/smokeping/



https://ixpmanager.ronix.ro//api/v4/grapher/config?backend=smokeping <https://ixpmanager.ronix.ro/api/v4/grapher/config?backend=smokeping&vlanid=1&protocol=ipv4> &vlanid=1&protocol=ipv4

-> generates an output looking good, eg sections like:

 �

# Teletrans SA / 217.156.113.18

+++ vlanint_39_ipv4

menu = Teletrans SA (IPv4)

title =  PEERING VLAN :: Teletrans SA via 217.156.113.18

probe = FPing

host = 217.156.113.18





Running the script returns ok

root at ixpmanager:/srv/ixpmanager# /srv/ixpmanager/tools/runtime/smokeping/update-smokeping.sh

Processing 1 - ipv4.... changed -> updated -> reload scheduled [DONE]

Processing 1 - ipv6.... unchanged -> skipping [DONE]

Smokeping reloading...

Configuration file '/etc/smokeping/config' syntax OK.



Where /etc/smokeping/config is:



root at ixpmanager:/etc/smokeping# cat /etc/smokeping/config

@include /etc/smokeping/config.d/General

@include /etc/smokeping/config.d/Alerts

@include /etc/smokeping/config.d/Database

@include /etc/smokeping/config.d/Presentation

@include /etc/smokeping/config.d/Probes

@include /etc/smokeping/config.d/Slaves

@include /etc/smokeping/config.d/Targets



… but still no graphs



Thanks,

Radu



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20210616/eed2c963/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ixmp-smokeping.jpg
Type: image/jpeg
Size: 317283 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20210616/eed2c963/attachment-0001.jpg>
