Hi Salvador,

I'm. not aware of any recursion issues and have never ran into them
before via INEX or IXP Manager so I don't see this as the issue.

IXP Manager passes the lookup off to bgpq3 so it's there we need to look:

I.e.

❯ /usr/bin/whois -h whois.ripe.net AS-EDGEUNO

[no result]

❯ /usr/bin/whois -h whois.arin.net AS-EDGEUNO
No match found for + AS-EDGEUNO.

For me, I get the result you're looking for by querying:

bgpq3 -S RADB,RIPE,ARIN -f 999 -3 -j AS-EDGEUNO | grep 213035
   213035,213042,213045,213052,213058,213064,213069,213081,

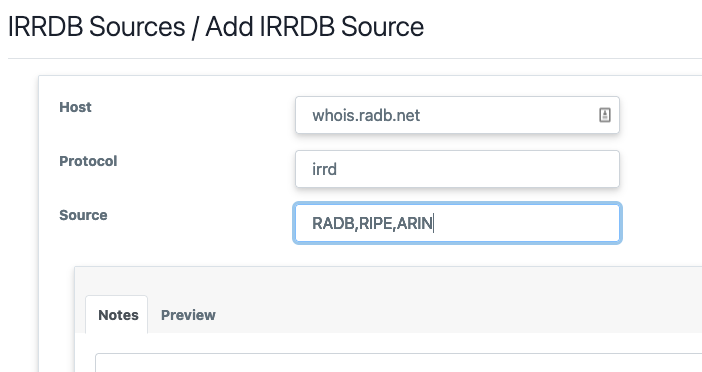

So you need an IRRDB source for RADB+RIPE+ARIN. You can add this in the
UI as follows:




(under IRRDB Configuration in the left hand menu).

  - Barry

Salvador Bertenbreiter wrote on 03/07/2021 00:44:
> Hi guys,
> I hope you're doing well. I'm checking the filtered prefixes for a
> peer (as-set: AS-EDGEUNO), I noticed that one prefix is being filtered
> even though it has a valid IRRDB record. While doing troubleshooting
> with the peer's NOC, the issue of the maximum number of supported
> recursions appeared, because we suspect that could be causing the
> issue. Do you know if there's a maximum number in the default
> configuration?
>
> The prefix with issues is 194.99.44.0/24 <http://194.99.44.0/24>, when
> I whois it in RADB it's under AS213035 (source in RDB: RIPE), which is
> contained as a member of AS-SERVERION (sources in RADB: RIPE and
> ARIN), and finally, that as-set is part of AS-EDGEUNO (our peer).
>
> So the chain is:
> AS-EDGEUNO > AS-SERVERION > AS213035
>

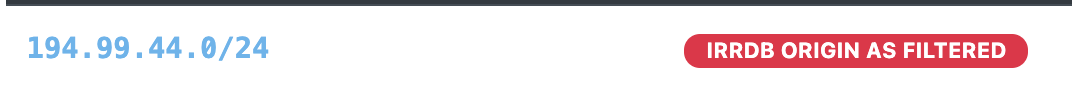

> However it still appears as IRRDB ORIGIN AS FILTERED.
> image.png
>
> Any suggestions?
>
> Thanks,
>
> Salvador
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> Unsubscribe or change options here: https://www.inex.ie/mailman/listinfo/ixpmanager

--

Kind regards,
Barry O'Donovan
INEX

https://www.inex.ie/support/
+353 1 531 3339
