[ixpmanager] IXPManager issue with VLAN selection in the Router add.

Nick Hilliard nick at inex.ie
Thu Apr 12 15:23:42 IST 2018


Please do not use Docker for production or sample installations.  Th IXP
Manager docker image is clearly marked as being for development purposes
only:

https://docs.ixpmanager.org/dev/docker/ :
> For development purposes, we have both Docker and Vagrant build files."

https://github.com/inex/ixp-manager-docker :
>
>
>     <https://github.com/inex/ixp-manager-docker#disclaimer>Disclaimer
>
> *This is not for production use.*
>
> This Docker application has been built solely for non-production use
> cases. It should never be used in production environments.
>
For a test or production installation, please start out with a clean
Ubuntu installation and follow the automated installation instructions
from the installers directory:

>  1. Prepare a physical / virtual machine with (minimum) 8GB of disk
>     space and 2GB of RAM. We recommend LVM so so partitions can be
>     grown on the fly.
>  2. Attach / insert the latest Ubuntu 16.04 LTS
>     <http://releases.ubuntu.com/16.04/> 64-bit PC (AMD64) server
>     install image and boot.
>  3. At the initial menu where you choose /Install Ubuntu Server/, first:
>       * Press F4
>       * If installing on a physical server, select /Install a minimum
>         system/
>       * If installing on a virtual server, select /Install a minimal
>         virtual machine/
>  4. Now select /Install Ubuntu Server/ and step through the various
>     options and configure as you like until:
>  5. When you reach the /Software selection/ screen, select *only*
>     |OpenSSH Server| and then complete the installation and reboot.
>  6. When your new server has rebooted, log in and:
>
> # change to root user
> sudo su -
> # download the installation script
> wget https://github.com/inex/IXP-Manager/raw/master/tools/installers/ubuntu-lts-1604-ixp-manager-v4.sh
> # and execute it:
> bash ./ubuntu-lts-1604-ixp-manager-v4.sh
Once you've installed IXP Manager using this production-ready system,
please run through the following tutorial to get a sample IXP config up
and running
> https://www.ixpmanager.org/media/2018/inex-apricot-ixp-manager-workshop2-installation-2018-02-25.pdf
Obviously, you will need to substitute your own switches, SNMP
communities and device names where appropriate.

Nick
> HASSANE BINTOU SAVANE <mailto:asavane at vdctelecom.com>
> 12 April 2018 at 14:12
>

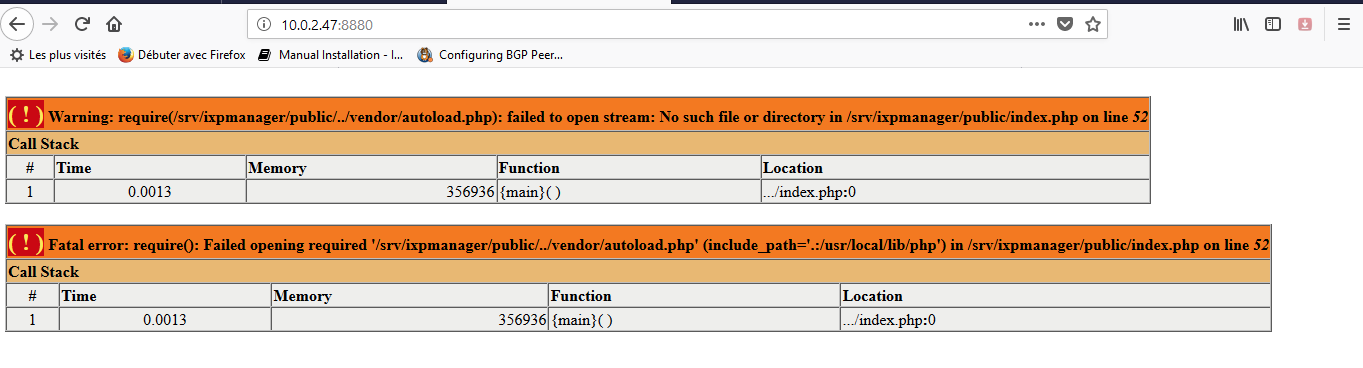

> here is the error that the web presents:
>
>
>
>
>
> Thanks
>
> *De :*ixpmanager <ixpmanager-bounces at inex.ie> *De la part de* Yann Robin
> *Envoyé :* jeudi 12 avril 2018 07:57
> *À :* INEX IXP Manager Mailing List <ixpmanager at inex.ie>
> *Objet :* Re: [ixpmanager] IXPManager issue with VLAN selection in the
> Router add.
>
>
>
> Hello,
>
> Please follow the doc everything is explained here :
> http://docs.ixpmanager.org/features/grapher/
>
> Thanks
>
>
>
>
> --
>
> Kind regards,
>
> Yann Robin
>
> +353 1 531 3334
>
> Island Bridge Networks Ltd.
>
> https://www.islandbridgenetworks.ie/ <http://www.islandbridgenetworks.ie/>
> <https://www.postbox-inc.com/?utm_source=email&utm_medium=siglink&utm_campaign=reach>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> https://www.inex.ie/mailman/listinfo/ixpmanager
> Yann Robin <mailto:yann at islandbridgenetworks.ie>
> 12 April 2018 at 08:57
> Hello,
>
> Please follow the doc everything is explained here :
> http://docs.ixpmanager.org/features/grapher/
>
> Thanks
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> https://www.inex.ie/mailman/listinfo/ixpmanager
> HASSANE BINTOU SAVANE <mailto:asavane at vdctelecom.com>
> 11 April 2018 at 19:39
>
> Hello;
>
> please help me deploy the MRTG and Sflow on my IXP Manager server.
>
>
>
> Thank you!
>
>
>
>
>
> *De :*ixpmanager <ixpmanager-bounces at inex.ie> *De la part de* Yann Robin
> *Envoyé :* mercredi 11 avril 2018 11:04
> *À :* INEX IXP Manager Mailing List <ixpmanager at inex.ie>
> *Objet :* Re: [ixpmanager] IXPManager issue with VLAN selection in the
> Router add.
>
>
>
> Hello,
>
> Can you be more precise when you say 'does not work' ? Does the page
> is broken ?
>
> Do you have error in the console of the browser ?
>
> Do you have screenshots to provide ?
>
> Thanks
>
>
>
>
> --
>
> Kind regards,
>
> Yann Robin
>
> +353 1 531 3334
>
> Island Bridge Networks Ltd.
>
> https://www.islandbridgenetworks.ie/ <http://www.islandbridgenetworks.ie/>
> <https://www.postbox-inc.com/?utm_source=email&utm_medium=siglink&utm_campaign=reach>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> https://www.inex.ie/mailman/listinfo/ixpmanager
> Yann Robin <mailto:yann at islandbridgenetworks.ie>
> 11 April 2018 at 12:03
> Hello,
>
> Can you be more precise when you say 'does not work' ? Does the page
> is broken ?
>
> Do you have error in the console of the browser ?
>
> Do you have screenshots to provide ?
>
> Thanks
>
>
> _______________________________________________
> INEX IXP Manager mailing list
> ixpmanager at inex.ie
> https://www.inex.ie/mailman/listinfo/ixpmanager
> HASSANE BINTOU SAVANE <mailto:asavane at vdctelecom.com>
> 11 April 2018 at 11:59
> Hi boss
> always with version 4.7.3 the same problem.
> the interface now appears, but the following parts:
> -Customers
> -Users
> -Contact
> -Switches
> -league table
> does not work (does not display)
>
> please Help me
> Thank you!
>
> -----Message d'origine-----
> De : ixpmanager <ixpmanager-bounces at inex.ie> De la part de Barry O'Donovan
> Envoyé : mardi 10 avril 2018 17:35
> À : INEX IXP Manager Mailing List <ixpmanager at inex.ie>
> Objet : Re: [ixpmanager] IXPManager issue with VLAN selection in the
> Router add.
>
> The install script has been checking out master which is not really
> the intention. We need to fix that I think.
>
> Can you do the following from /srv/ixpmanager as root:
>
> git checkout v4.7.3
>
> php ./composer.phar install
>
> bower --config.interactive=false --allow-root -f prune bower
> --config.interactive=false --allow-root -f update
>
> systemctl restart memcached.service
> ./artisan cache:clear
> ./artisan doctrine:schema:update --force systemctl restart
> memcached.service
>
> chown -R www-data: public/bower_components bower.json storage vendor
> var bootstrap/cache
>
> chmod -R u+rwX public/bower_components bower.json storage vendor var
> bootstrap/cache
>
>
> If any of the above doesn't work, read:
> http://docs.ixpmanager.org/install/upgrading/
>
>
> - Barry
>
>
>
>
>
> ------------------------------------------------------------------------
