[ixpmanager] MRTG issues

[Ajai Kumar]

Hi,

We are running IXP manager in centos 7.1 and observing following issues
with MRTG configuration. Can some one guide on it.

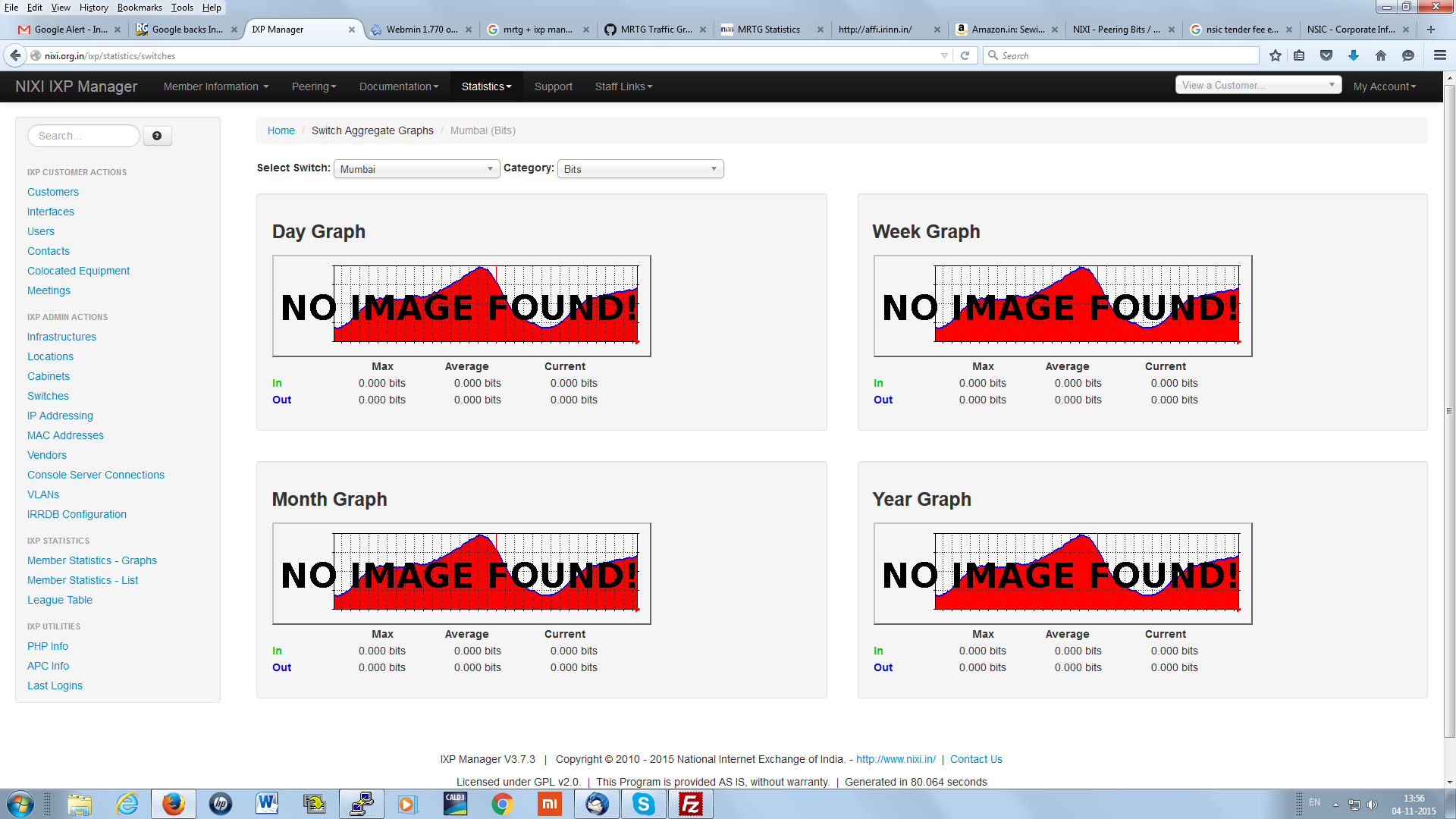

   1. I am not able to see switch aggregate graph (refer print screen
   attached). However graphs are available and see from back end after doing
   ssh( refer print screen _backend).
   2. The graphs are available and able to see at under the a overall
   peering graph. However I am not able to see aggregate IXP including all
   Infrastructure( or all city noida+ mumbai+chennai+
   kolkata+hyderabad+bangalore)*. Can it be done?*
   3. MRTG process some time  get hanged. We have to start via
   following.Can It be done automatically?

   *ps aux | grep mrtg*
   root      3892  0.0  0.0  11604  1128 ?        S    11:47   0:00 sh
-c (ps aux | grep mrtg) 2>&1
   root      3893  0.0  0.0  11604   580 ?        S    11:47   0:00 sh
-c (ps aux | grep mrtg) 2>&1
   root      3895  0.0  0.0   9036   668 ?        S    11:47   0:00 grep mrtg
   root      9777  2.8  7.9 271328 231016 ?       Ss   Nov01 104:37
/usr/bin/perl -w /usr/bin/mrtg /etc/mrtg/mrtg.cfg*> kill 9777*(*> env
LANG=C /usr/bin/mrtg  /etc/mrtg/mrtg.cfg*
   Daemonizing MRTG ...

   4.  If I am adding following in the cron .What should be frequency for
   the same /usr/local/ixp/bin/ixptool.php -a statistics-cli.gen-mrtg-conf


Regards,
Ajai Kumar
