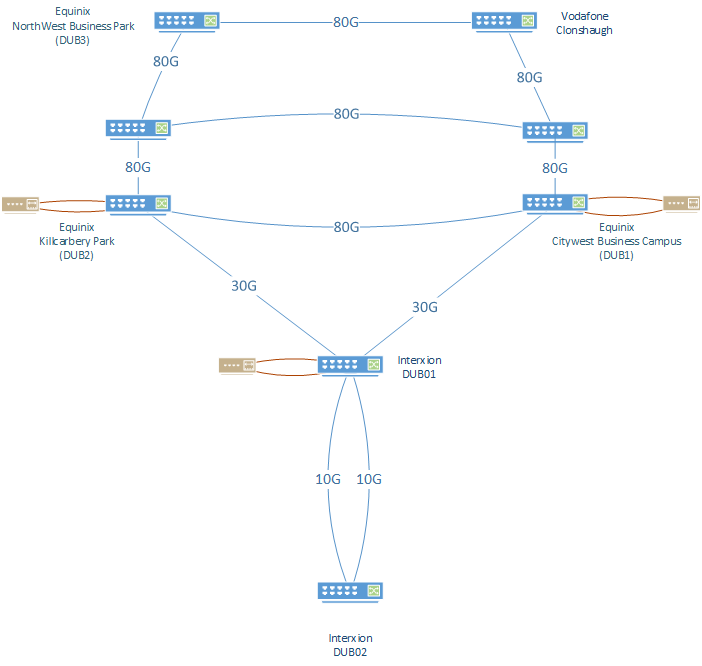

Network Diagram

INEX’s network in Dublin comprises two segregated peering LANs with points of presence in BT Ireland (Citywest), Equinix DB1 (Citywest), Equinix DB2 (Kilcarbery), Equinix DB3 (Northwest Business Park), Interxion DUB1, Interxion DUB2 and Vodafone Clonshaugh.

On LAN1, INEX uses Arista DCS-7060CX2-32S’s for its core and 100Gb access and Arista DCS-7280SR’s 10Gb/1Gb access.

On LAN2, INEX uses Mellanox MSN2100’s for its core and 100Gb access and Extreme X670-G2 48X switches for its 10G an 1Gb access.

Core connectivity currently operates using mostly 100G – 200G links built with Infinera Groove G30 transmission equipment (and, in cases of 10Gb lags, using passive optics).
