[ixpmanager] Aggregated Traffic somehow can't pass 20G even though the total ports for the member is 40G

[André Grüneberg]

Dear Earlvin,

Unfortunately you did not include the full mrtg config. But since you are
referring to RRD, I assume you are using RRD as MRTG backend storage? RRD
files have a limit that is set during creation of the file.
I found some sensible instructions on how to check and how to fix such kind
of issues in http://forums.cacti.net/viewtopic.php?t=54988

Best wishes,
André

On Mon, 4 Mar 2024 at 08:39, Earl Tan via ixpmanager <ixpmanager at inex.ie>
wrote:

> Good Day to All!
>

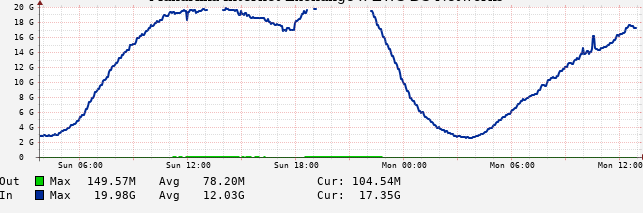

> We have observed that the traffic cannot exceed 20G, even though the
> actual traffic volume is 29G. ( we noticed only last week. )
> [image: image.png]
>

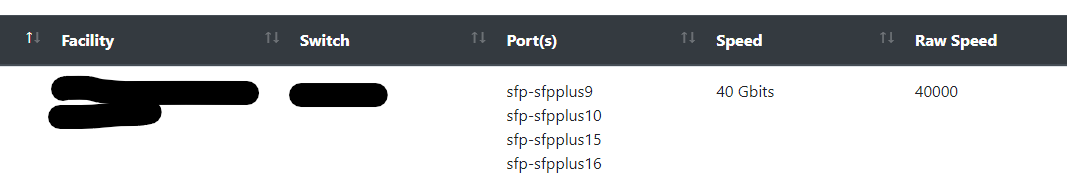

> The Ports in total are 40G, the config file for MRTG seems ok to me.
> [image: image.png]
>
> MRTG Config File for that member -->
> https://pastebin.ibn.ie/?1f4e1b93bc6cb11b#AGdRwz1Ygu6WpV8pcvhmFpKg7yuuiXkyhYv5tfGou8WK (
> mrtg.cfg )
>

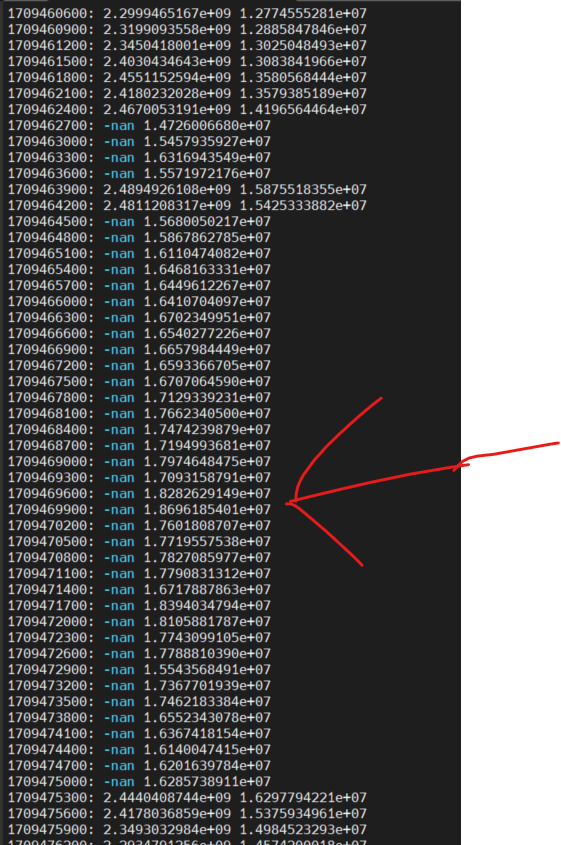

> The RRD data appears as "NaN" for the periods that were blank. I don't
> know why.
> [image: image.png]
>
> I can't seem to find the problem as to why it is "somehow / like" limiting
> it to a specific threshold like 20G. All individual ports seems to be fine
> ( each 6G-7G )
>
> Server's Versions:
> OS: Ubuntu 20.04.6 LTS
> PHP: PHP 8.0.28
> IXP Version: 6.3.0 ( 2022110200 )
>
> Best Regards,
>
> <https://aftechph.com>
>
> Earlvin Tan
>
> Software Developer
>
> AFTECH
>
> earl at aftechph.com
>
> aftechph.com
>
>
>
