[ixpmanager] Peer to Peer graphs

[Nick Hilliard (INEX)]

Edrich de Lange wrote on 18/01/2019 09:50:
> So we finally got around to getting our general sflow graphs working,
> and the normal graphs are appearing in the frontend.
>
> However for the life of me I cannot figure where to find the peer to
> peer graphs in IXP manager. We are up to date running 4.9. Can anyone
> direct me to the right spot?

Hi Ed,

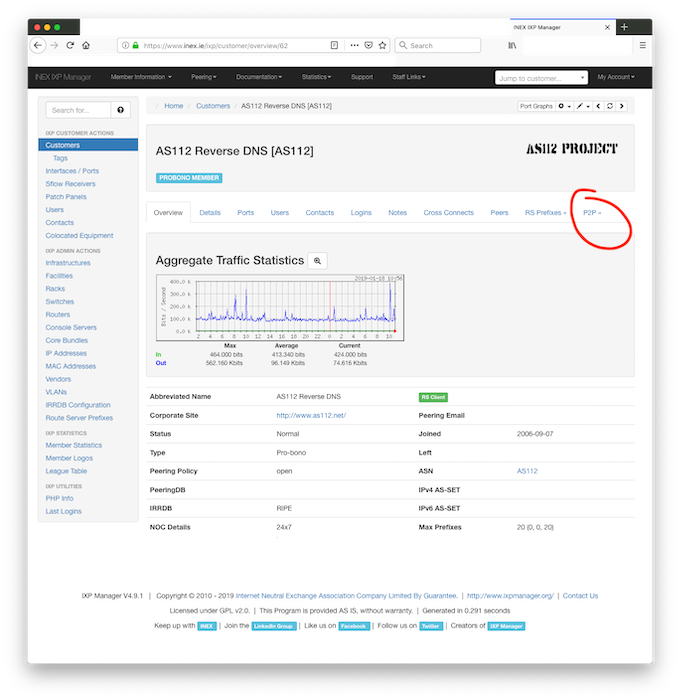

The p2p graphs should appear in the customer view page, on RHS - see the
attached screenshot.

Did you enable sflow in .env?

--
GRAPHER_BACKENDS="mrtg|sflow|smokeping"
GRAPHER_BACKEND_SFLOW_ENABLED=true
GRAPHER_BACKEND_SFLOW_ROOT="http://x.x.x.x/grapher-sflow"
--

This is documented here:

https://docs.ixpmanager.org/features/sflow-p2p/

Nick
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screenshot 2019-01-18 at 10.58.23.png
Type: image/png
Size: 216444 bytes
Desc: not available
URL: <https://www.inex.ie/pipermail/ixpmanager/attachments/20190118/dbbafa95/attachment-0001.png>
